Use this page to check the build detail behind an electric guitar body for sale at TWT Guitars, then compare finish, weight and routing options when you shop for a guitar body online.
Start with the platform, then confirm the routing and the finish. Every option below is documented on the featured Telecaster SS body page; where a variation is not listed, the honest next step is to ask.
Telecaster — the platform this build sheet covers end to end.
Roasted poplar, described on the product page as enhancing tone while keeping the body light and stable.
Top routed for a Telecaster single-coil (SS) layout that is stated to accept universal pickup settings.

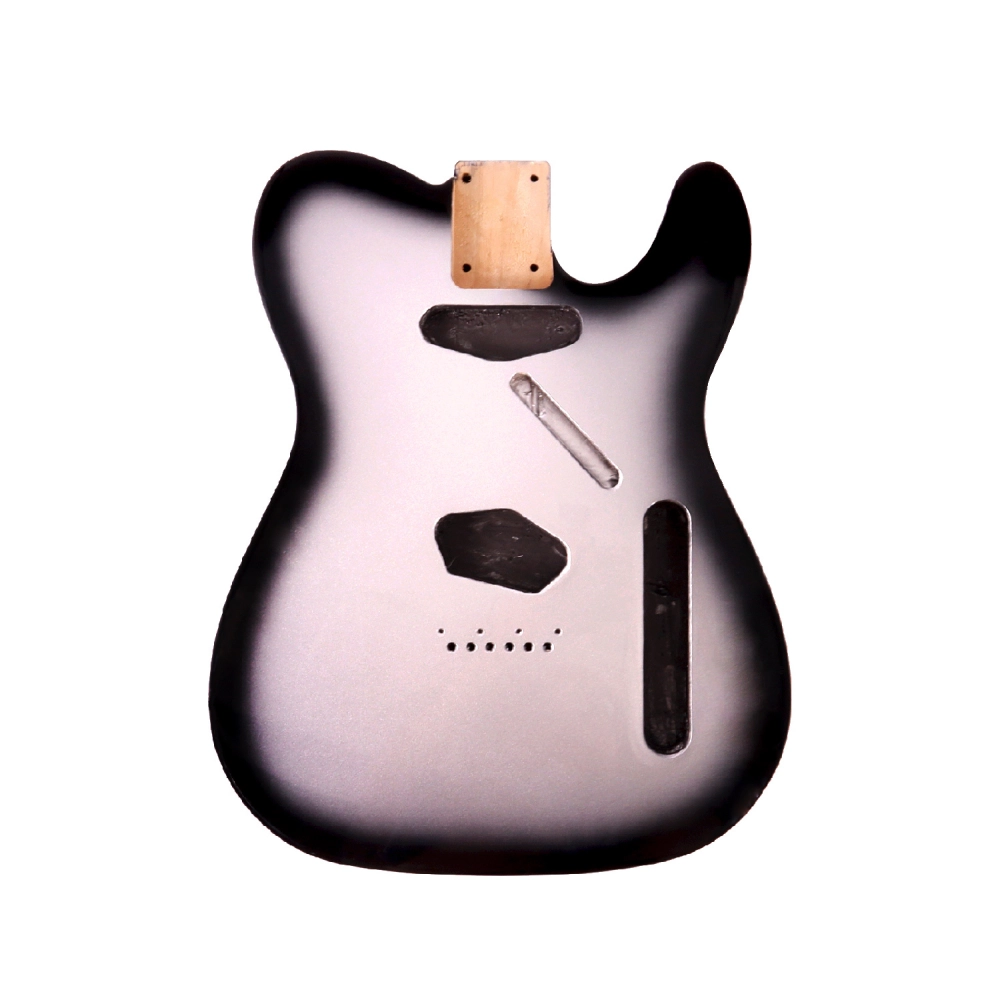

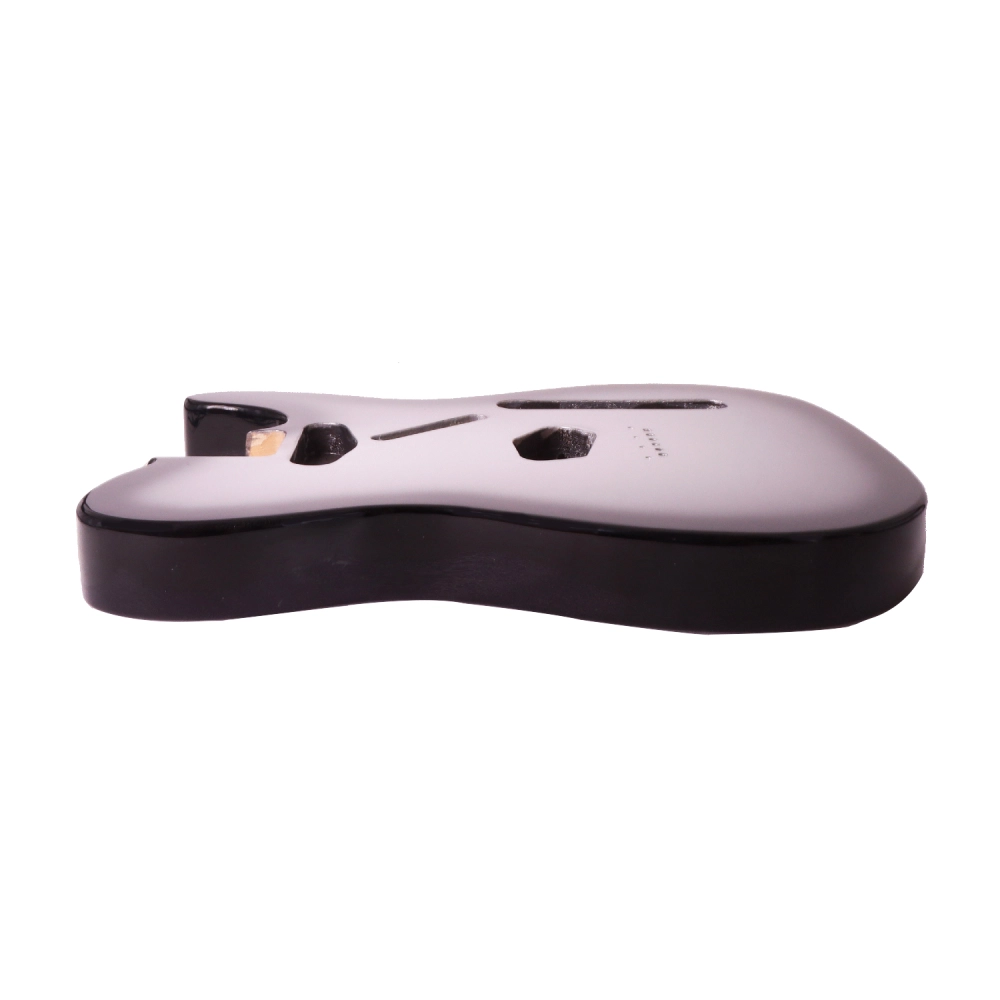

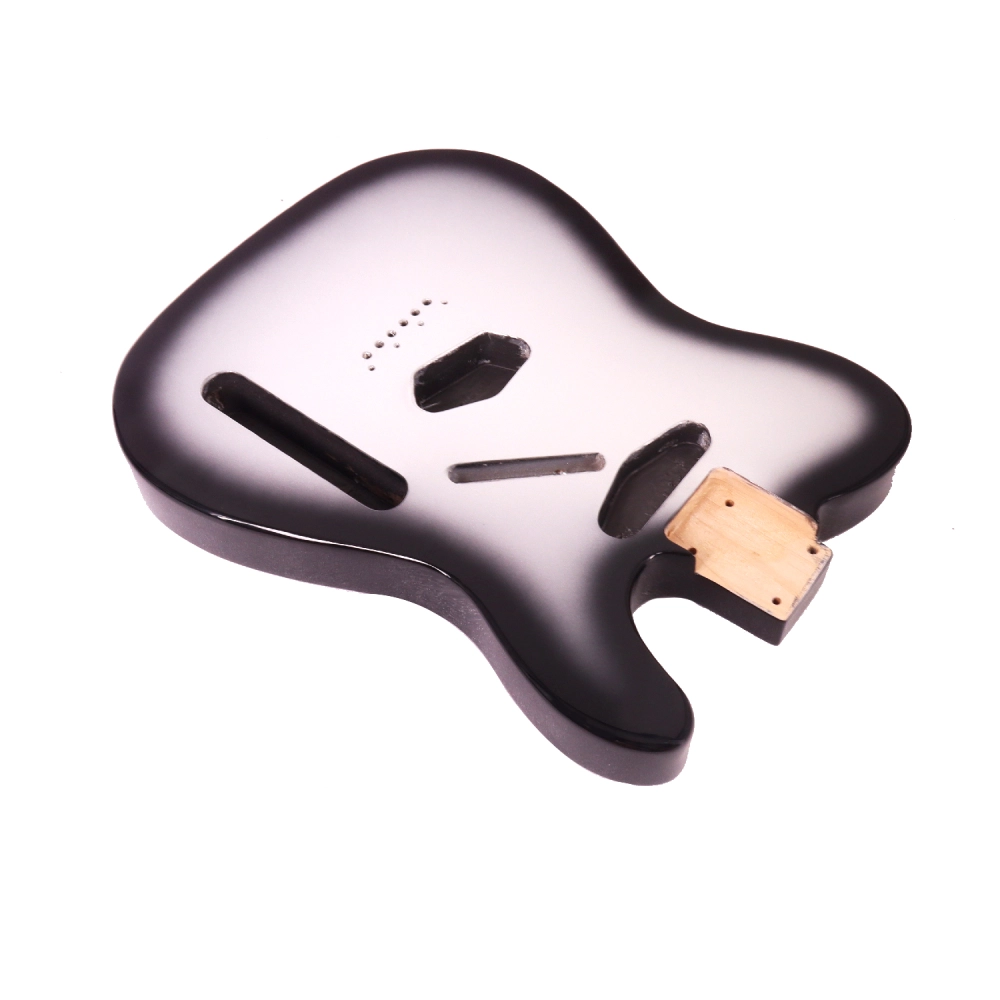

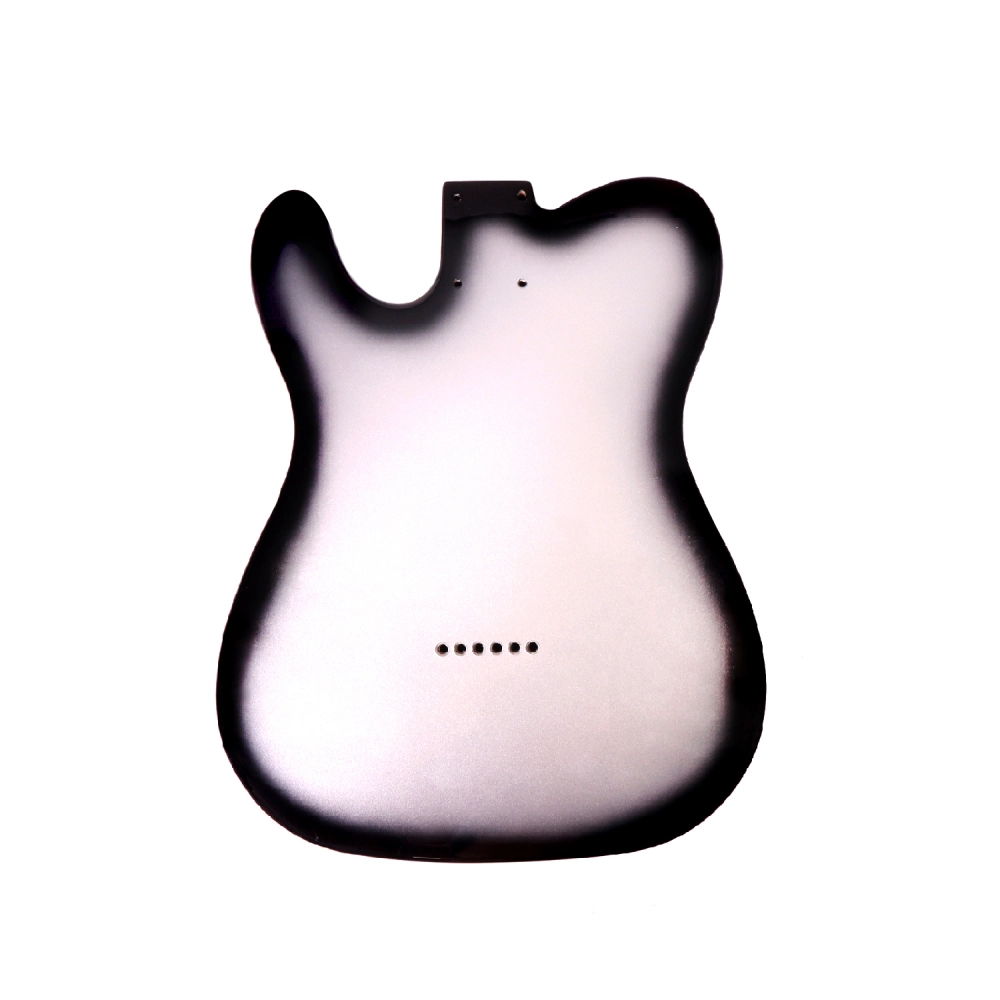

Silver Burst on the featured SKU, with more finishes named for the line.
Ships from US stock in a strengthened, thickened foam case.
Finish and variant availability can change. Confirm the exact color and routing on the featured body page, or send us your spec and we will confirm what is on hand.
A single-SKU spotlight with the numbers that decide whether your neck, pickups and control plate will drop in.
The product page also offers a favorites list, a Notify Me option, and a Buy at Amazon link for this body.
Measure your neck heel, bridge and control plate against these numbers before you commit to a finished body.
| Build Point | Documented Spec |
|---|---|
| Neck Pocket Width | 2-7/32" (56 mm) — USA standard |
| Neck Pocket Length | 3" (76.2 mm) |
| Neck Pocket Depth | 5/8" (15.88 mm) |
| Scale Length | 25-1/2" |
| Body Thickness | 1-3/4" (44.5 mm) |
| Pickup Routing | Top routed for Telecaster single coil (SS); accepts universal pickup settings |
| Control Cavity | 50's F Brand Top Guard Style |
| Jack | Vintage Top Mount |
| Contours | 50's Style |
The listing names Silver Burst for this SKU and lists additional finishes for the line. Finish availability can vary by variant, so confirm the color before checkout.
The finish on SKU TLSSRPHTMS, applied as a polyester finish over roasted poplar.
Listed as an available finish for this body line. Confirm the variant before ordering.
Listed as an available finish for this body line. Confirm the variant before ordering.
Listed as an available finish for this body line. Confirm the variant before ordering.
The listing notes more finishes beyond those named above. If the color you need is not shown, tell us the finish you want and we will confirm availability.
Use this table to see what is fixed on this body and what you must confirm if you are building on a different platform.
| Build Point | This Body — Telecaster SS | Stratocaster-Style Build |
|---|---|---|
| Pickup Layout | Top routed for two single-coil pickups (SS) | Typically a three-pickup layout — confirm the routing on the specific body you select |
| Neck Pocket | 2-7/32" W × 3" L × 5/8" D | Pocket dimensions differ between platforms — verify before buying a neck |
| Control Cavity | 50's F Brand Top Guard Style | Confirm control plate style and cavity shape on your chosen body |
| Jack | Vintage Top Mount | Confirm jack placement and cup type on your chosen body |
| Scale Length | 25-1/2" | Confirm the stated scale length before matching a neck |
| Body Thickness | 1-3/4" (44.5 mm), 50's style contours | Confirm thickness and weight for the body you select |
Sizing is platform-specific. The Telecaster SS column reflects this body's published specs; the Stratocaster-style column lists what to verify rather than a spec we can confirm for another body.
Four common buying situations, each tied to a concrete number from the featured body and the decision it forces.
Roasted poplar is described on the product page as enhancing tone and providing lasting durability, while keeping the body lightweight.
Neck pocket 2-7/32" × 3" × 5/8", scale length 25-1/2", thickness 1-3/4".
Top-routed SS layout that accepts universal pickup settings, 50's F Brand Top Guard Style control cavity, vintage top-mount jack.
Listed weight range of 3.5 lbs (1.6 kg) to 4.4 lbs (2.0 kg) in roasted poplar.
One SKU (TLSSRPHTMS) with named finishes including Sea Foam Green, Candy Apple Red and Lake Placid Blue.
What happens between checkout and the moment the body reaches your bench.
Send the body shape, pickup routing, neck pocket size and finish you need. Bulk orders, finish variations and build-fit questions are all handled through the contact page, and you can fall back to the Notify Me option on the product page if a variant is not listed.
Keep adjacent product options together for a faster catalog comparison.
Frets: 22 Frets Medium-Jumbo Neck: Canadian Maple Neck fretboard: Rosewood fretboard Radius:9.5
View product
Frets: 22 Frets Medium-Jumbo Neck: Canadian Rosted Maple Neck fretboard: Canadian Rosted Maple fretboard Radius:12
View product
Frets: 22 Frets Medium-Jumbo Neck: Canadian Maple Neck fretboard: Canadian Maple fretboard Radius:12
View productthe neck pocket measures 2-7/32" (56 mm) wide, 3" (76.2 mm) long and 5/8" (15.88 mm) deep — the usa-standard width for a telecaster neck. measure your neck heel against all three figures before ordering.
it is top routed for a telecaster single-coil (ss) configuration, meaning two single-coil pickups, and the listing states it accepts universal pickup settings. the control cavity is cut in the 50's f brand top guard style and the jack is a vintage top mount.
the listed weight range is 3.5 lbs / 1.6 kg to 4.4 lbs / 2.0 kg, with a scale length of 25-1/2". body thickness is a standard 1-3/4" (44.5 mm) with 50's style contours.
the featured sku is silver burst with a polyester finish. the listing also names sea foam green, candy apple red and lake placid blue, and notes more options. finish availability can vary by variant, so confirm the exact color on the product page before ordering.
the body ships from the us and is supplied in a strengthened, thickened foam case described as providing 100% protection in transit.
yes — send your quantity, body shape, routing and finish requirement through the contact page. bulk orders and finish requests are handled there, and you can use notify me on the product page if a variant is not currently listed.
